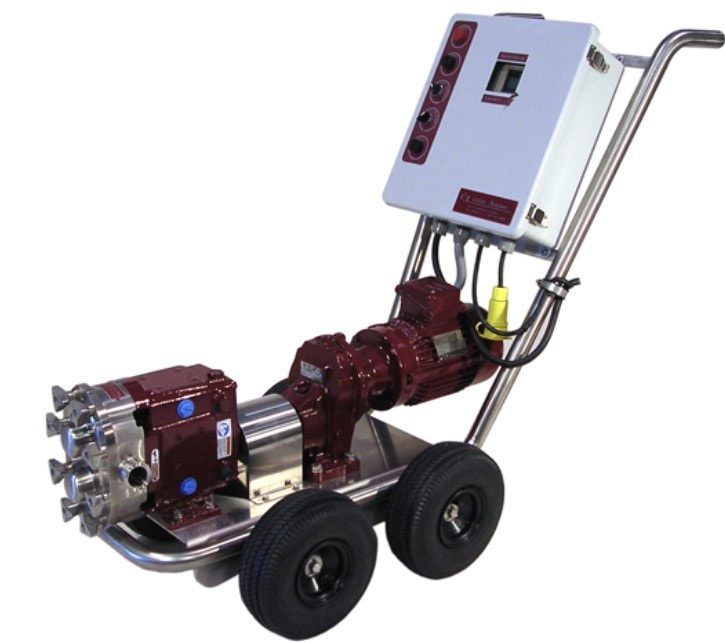

Type 1: Waukesha-Type Carlsen Positive Displacement Pumps
Used worldwide in wine, beer, dairy, cosmetics and pharmaceuticals, the Waukesha is a household name in our country. When you look at a Waukesha-type Carlsen pump, you're looking at that same robust design, made in the very plant where Waukesha pumps used to be made. It's the strongest and gentlest wine pump and must pump in our industry.
This self-priming pump will not increase solids or vegetal characteristics in wine during must pumping or pumpovers. Enjoy lower dissolved oxygen and more work done with less stress on the wine.
Carlsen's own Waukesha-type head and rotors, made in that same American plant, are added to an all-star list of Carlsen-specific parts in an unbeatable combination. From the pump head to the cart to the variable frequency drive, it's uniquely Carlsen. Others may offer a Waukesha-style head on a cart, but you won't find our warranty, support, service or knowledge elsewhere.

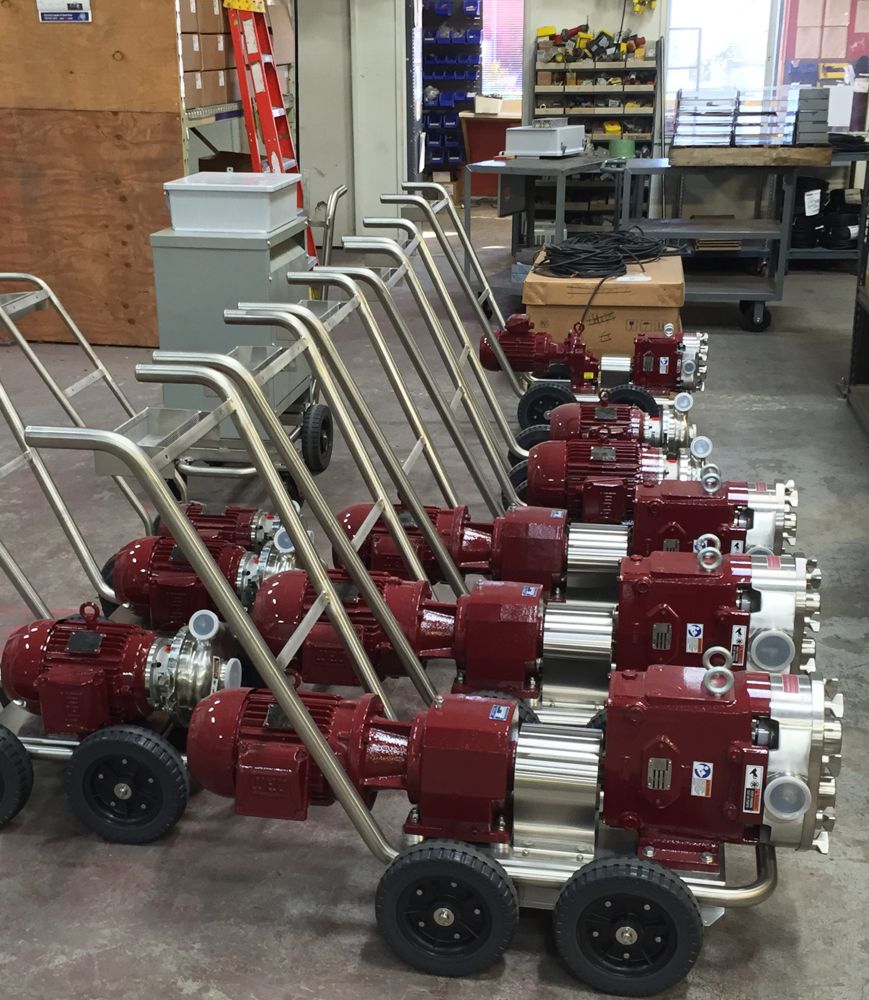

Waukesha-Type Carlsen Pump Sizes and Uses
Our Waukesha-type Carlsen pumps come in six sizes, sized in gallons per minute. The W30 through W130 run on 220V single phase, 208/230V three phase, or 480V three phase; the W220 and W320 are three phase only (208/230V or 480V). Specify at time of order.
| Pump | W301–30 GPM · 1½" T/C | W401–40 GPM · 2" T/C | W601–60 GPM · 2½" T/C | W1301–130 GPM · 3" T/C | W2201–220 GPM · 4" T/C | W3201–320 GPM · 6" Camlock |
|---|---|---|---|---|---|---|
| Bottling at scale | Yes | Yes | Yes | Yes | Yes | Yes |
| Filtration (not with D.E.) | Yes | Yes | Yes | Yes | Yes | Yes |
| Transfer | Yes | Yes | Yes | Yes | Yes | Yes |
| Pumpover | No | No | Yes | Yes | Yes | Yes |
| Pumping must | No | No | No | Yes | Yes | Yes |
Turn a W130, W220 or W320 into a must pump with the Carlsen must sump. About the must pumping system. Keeping yours running? See care and feeding of Waukesha-type pumps.
Waukesha-Type Carlsen Pump Specifications
| Pump | W30 | W40 | W60 | W130 | W220 | W320 |
|---|---|---|---|---|---|---|
| Maximum flow | 30 GPM | 40 GPM | 60 GPM | 130 GPM | 220 GPM | 320 GPM |
| Bottling speed | 150 BPM | 200 BPM | 300 BPM | – | – | – |
| Maximum pressure | 60 PSI | 60 PSI | 60 PSI | 80 PSI | 100 PSI | – |
| Ports | 1½" Tri-Clamp | 2" Tri-Clamp | 2½" Tri-Clamp | 3" Tri-Clamp | 4" Tri-Clamp | 6" Camlock (one male, one female supplied) |
| Must pumping | – | – | – | Up to 15 tons/hr | Up to 50 tons/hr, whole berries with juice | Up to 80 tons/hr, whole clusters |
| Seals | Single O-ring seals for easy replacement and cleaning | Mechanical seals | ||||
| Size (L × W × H) | 53" × 21" × 40¼" | 53½" × 21" × 40¼" | – | 54" × 21" × 40¼" | 68.7" × 24½" × 40⅝" | 72" × 38" × 49" |
| Port height (to center) | 12⅞" | 12⅞" | – | 15" | 18½" | 15" |
| Standard | Stainless steel pump head and rotors; stainless steel cart (casters or wheels); variable speed with a 50' speed control; reversible flow on the W220 and W320 | |||||
| Options | Float switch for press pans and pumpover sumps; pumpover timers; pressure transducer for barrel work; pressure switch for axial-feed press filling; remote start/stop with 50' cable | |||||

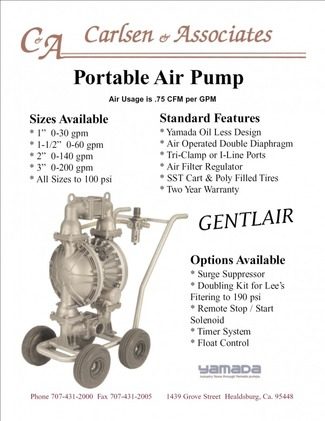

Type 2: Yamada Air Diaphragm Pumps
Yamada pumps are a cost-effective, food-grade, simple, easy-to-maintain pump that's great for barrel topping, transfers, some types of filtration, and pumping out a press pan. They run on compressed air, not electricity.
One neat feature: you can set the pressure output on the on-board regulator to a level that lets you close the downstream valve without yelling at someone to stop the pump 100 feet away.
The only possible downside is the need for compressed air. You probably need an air compressor anyway, so that's not the end of the world. Yamada owners enjoy the light weight, portability, functionality, and low risk of blowing up a hose.
Popular Yamada Sizes
| Model | Flow | Connection |
|---|---|---|
| NDP-15 barrel topping system | with wand and hose assembly | |
| NDP-25 | 30 GPM | 1½" T/C |
| NDP-40 | 60 GPM | 2" T/C |
| NDP-50 | 140 GPM | 2" T/C |
| NDP-80 | 200 GPM | 3" T/C |
Yamada Pump Specifications
| Model | Bore | Ports | Flow | Air required | Cart and pump body |
|---|---|---|---|---|---|
| NDP-15 | ½" | 1½" Tri-Clamp | 15 GPM | 10 CFM (3 HP compressor) | Hand-carry stainless cart, polypropylene pump |
| NDP-25 | 1" | 1½" Tri-Clamp | 30 GPM | 23 CFM (7.5 HP compressor) | Two-wheel cart, stainless steel pump |

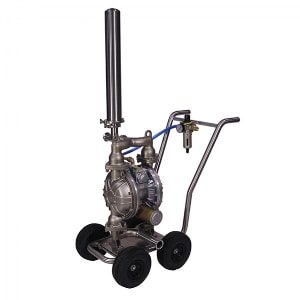

| NDP-40 | 1½" | 2" Tri-Clamp | 60 GPM | 45 CFM (15 HP compressor) | Four-wheel cart, stainless steel pump |
| NDP-50 | 2" | 2" Tri-Clamp | 140 GPM | 100 CFM (35 HP compressor) | Four-wheel cart, stainless steel pump |

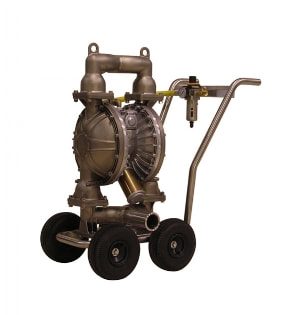

| NDP-80 | 3" | 3" Tri-Clamp | 200 GPM | 150 CFM (50 HP compressor) | Four-wheel cart, stainless steel pump |
| Every pump | Cart, parts basket, air pressure regulator, air flow control valve and surge suppressor (except the NDP-15). Low shear, self priming, runs dry, can be dead-headed, no mechanical seals or motors, explosion proof when grounded. Optional flip cart for draining the NDP-40 and NDP-50. | ||||
| Barrel Topping System | Specification |
|---|---|
| Flow and pressure | 0 to 15 GPM, up to 100 PSI |
| Pump | Yamada air-operated double diaphragm, polypropylene body for light weight, Hytrel diaphragms |
| Air usage | 0.65 CFM per GPM; air filter regulator included |
| Included | Stainless portable frame; barrel dip tube with 10' of inlet hose; stainless steel topping gun with 50' hose; Tri-Clamp or Camlock connections |
| Options | Setup for two guns; wheeled cart |

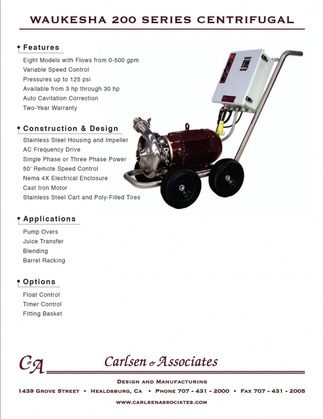

Type 3: Waukesha 200 Series Centrifugal Pumps
Centrifugal pumps are loved by brewers and winemakers alike. Our rugged centrifugals, with anti-cavitation technology, are genuine Waukesha, with the same great service and support as everything else from Carlsen. Popular with folks who love pumpovers and a lot of pump for the money, they can be a gravity-flow winery's go-to pump, or a great second pump. We offer them in several sizes, horsepower ratings and voltages.
Centrifugal Pump Specifications
| Waukesha Centrifugals | Specification |
|---|---|
| Models | 2045-1.5, 2065-3, 2065-5, 2065HV-5, 2065-10, 2085-10, 2085-15, 2105-20, 2105-25 |
| Flow | 0 to 500 GPM across the line |
| Pressure | Up to 125 PSI |
| Motors | 1 HP through 30 HP, cast iron; single or three phase |
| Construction | Stainless steel housing and impeller; stainless steel cart |
| Controls | Variable frequency drive; automatic cavitation correction built in |
| Uses | Pumpovers, juice transfers, blending, barrel racking, tank washing (2065-10) |
| Options | Float control; timer control; remote start/stop with 50' cable; automatic pumpover setups in 2, 3, 5 and 10 HP |
